John Deere Compact Construction Equipment
Upgrade Your Fleet
0% for 60 Months
OR Huge Discount on Cash Purchase!
Expires 01.04.27
If financed, a financing fee may be added. A 3% surcharge will be applied to credit card transactions exceeding $3,000. Prices and model availability may vary by dealer. Some restrictions apply; other rates and terms may be available, so see your dealer for details and other financing options.

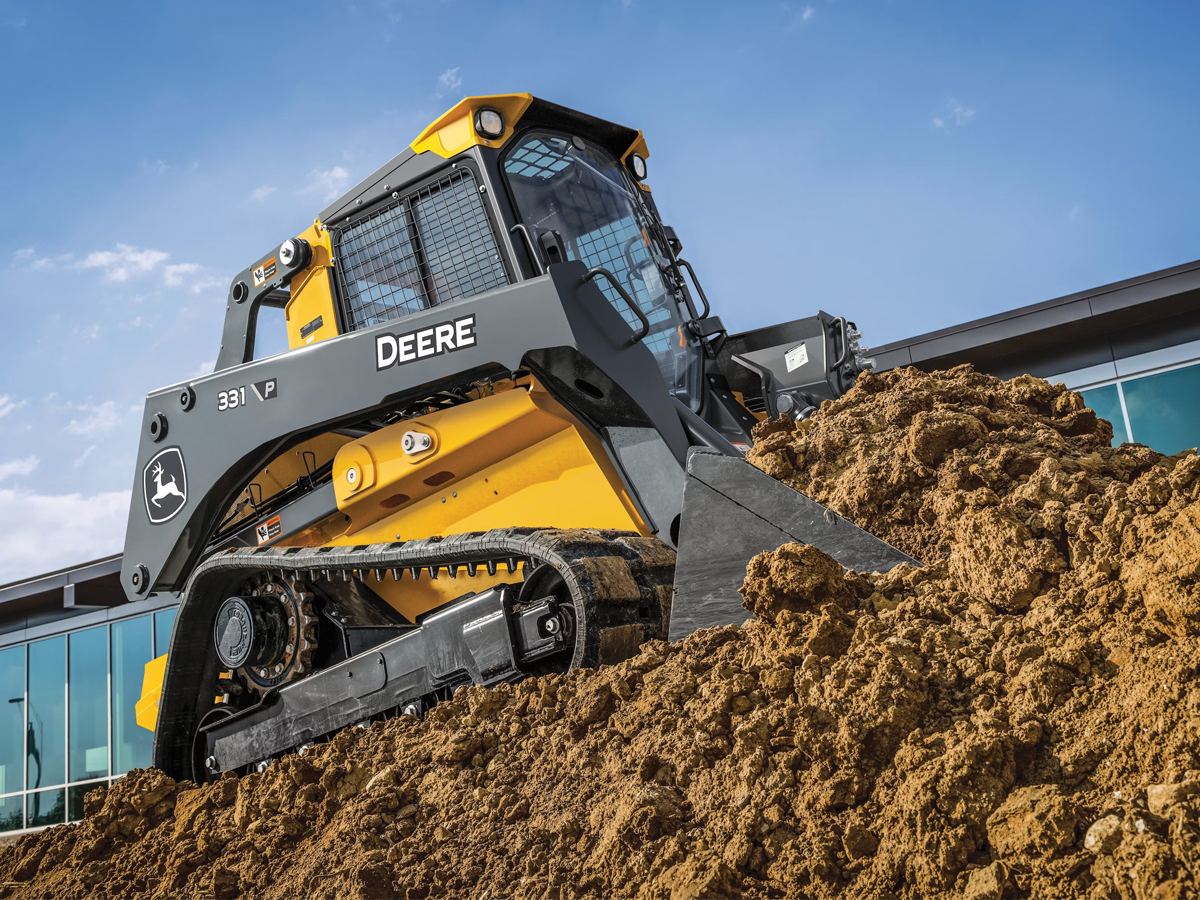

Compact Track Loader
- Final Tier 4-emission certified engine
- 7 MPH travel speed
- Displacement - 128.0 cu in.
- Rated engine speed - 2600.0 rpm
- Travel speed high - 7.0 mph
- Specs: • Hydraulic horsepower standard flow (calculated) - 33.0 hp • Advertised tipping load with construction bucket - 6070.0 lb. • Net power (SAE J1349, ISO 9249) at 2600 rpm - 61.0 hp • Rated gross power (ISO 14396) at 2600 rpm - 65.0 hp • Displacement - 128.0 cu in. • Rated engine speed - 2600.0 rpm • Aspiration - Turbo • Standard track width - 12.6 in. • Ground pressure standard track - 5.5 psi • Standard pump flow - 17.0 gpm • System pressure at couplers - 3450.0 psi • Hydraulic horsepower standard flow (calculated) - 33.0 hp • Fuel tank - 19.0 gal. • Standard track operating weight - 8423.0 lb. • Length without bucket - 103.0 in. • Length without bucket - 8.6 ft. • Length with foundry bucket - 127.6 in. • Length with foundry bucket - 10.6 ft. • Width without bucket with 12.6-in. tracks - 65.1 in. • Height to top of rollover protective structure (ROPS) - 78.0 in. • Height to top of rollover protective structure (ROPS) - 6.5 ft. • Height to hinge pin - 121.0 in. • Height to hinge pin - 10.1 ft. • Dump height, foundry bucket - 95.6 in. • Dump height, foundry bucket - 8 ft. • Ground clearance - 7.4 in. • Angle of departure - 32.3 degrees • Dump angle (full lift height) - 42.0 degrees • Bucket rollback (ground level) - 30.0 degrees • Advertised tipping load with construction bucket - 6070.0 lb. • SAE rated operating capacity at 35% tipping load (construction bucket) - 2125.0 lb. • Boom breakout force with construction bucket - 5250.0 lb. • Bucket breakout force with foundry bucket - 6000.0 lb.
- Key Specs: Manufacturer - Yanmar® Model - 4TNV98CT Displacement - 203.0 cu in. Rated engine speed - 2500.0 rpm Travel speed low - 5.2 mph Travel speed high - 8.2 mph Hydraulic horsepower standard flow (calculated) - 41.7 hp Engine Manufacturer - Yanmar® Model - 4TNV98CT Non-road emission standards - EPA Final Tier 4/EU Stage IV Engine cylinders - 4 Net power (SAE J1349, ISO 9249) at 2500 rpm - 70.0 hp Rated gross power (ISO 14396) at 2500 rpm - 74.0 hp Rated gross power (ISO 14396) at 2600 rpm - 74.0 hp Peak torque at 1800 rpm - 207.0 lb-ft Displacement - 203.0 cu in. Rated engine speed - 2500.0 rpm Torque rise percent at 1800 rpm - 34.0 % Aspiration - Turbocharged Air cleaner type - Dry dual element Cooling Fan drive type - Variable-speed hydraulic drive standard / reversing fan drive optional Powertrain Pump type - Axial-piston hydrostatic pump Controls type - Electrohydraulic Single speed - 5.8 mph Travel speed low - 5.2 mph Travel speed high - 8.2 mph Parking brake type - Integral, automatic, spring-applied, hydraulically-released, wet-disk brake Undercarriage Rubber tracks construction - New-generation, smooth-ride, long-life rubber with steel inserts Standard track width - 12.6 in. Optional track width - 15.8 in. Ground pressure standard track - 5.7 psi Ground pressure optional track - 4.7 psi Track rollers (per side) - Four triple-flange, smooth-ride, all-steel rollers Track idlers (per side) - Two double-flange, smooth-ride, all-steel rollers Bearings/seals (rollers/idlers) type - Heavy-duty journal bearings and metal face seals Tractive effort - 8500.0 lbf Hydraulics Standard pump flow - 21.0 gpm High flow option total pump flow - 32.0 gpm System pressure at couplers - 3450.0 psiPerMin Hydraulic horsepower standard flow (calculated) - 41.7 hp Hydraulic horsepower high flow (calculated) - 63.6 hp Cylinders Cylinders type - John Deere, heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins Electrical Voltage - 12.0 V Battery Capacity - 750 standard / 925 optional CCA Alternator rating with A/C - 75.0 amp Lighting options - Halogen (two front and one rear) Operator Station Structure - Rollover protective structure (ISO 3471) / falling object protective structure (ISO 3449) with quick-pivot standard Monitoring Alternator, low voltage - Indicator light Auxiliary hydraulics - Digital Battery voltage - Digital Diagnostics - Digital Engine air filter restriction indicator - Indicator light Engine coolant temperature - Indicator light, audible warning, gauge, digital Engine oil pressure - Indicator light, audible warning Engine rpm indicator - Digital Fuel gauge - Gauge Hourmeter - Digital Hydraulic oil filter restriction - Indicator light Hydraulic oil temperature - Indicator light, audible warning, digital Park brake engaged - Indicator light Seat belt reminder - Indicator light Hi-flow indicator - Indicator light Warm-up indicator - Digital Serviceability Fuel tank - 21.0 gal. Cooling system - 13.2 qt Engine oil capacity with filter - 13.2 qt Hydraulic reservoir - 7.0 gal. Hydraulic planetary gearbox - 0.84 gal. Operating Weights Standard track - 9500.0 lb. Optional track - 9650.0 lb. Machine Dimensions Length without bucket - 112.3 in. Length without bucket - 9, 4 ft, in. Length with foundry bucket - 136.3 in. Length with foundry bucket - 11, 4 ft, in. Width without bucket with 12.6-in. tracks - 71.5 in. Width without bucket with 12.6-in. tracks - 6, 0 ft, in. Width without bucket with 15.8-in. tracks - 74.7 in. Width without bucket with 15.8-in. tracks - 6, 3 ft, in. Height to top of rollover protective structure (ROPS) - 81.1 in. Height to top of rollover protective structure (ROPS) - 6, 9 ft, in. Height to hinge pin - 126.1 in. Height to hinge pin - 10, 6 ft, in. Dump height, foundry bucket - 102.1 in. Dump height, foundry bucket - 8, 6 ft, in. Dump reach, foundry bucket - 29.7 in. Dump reach, foundry bucket - 2, 6 ft, in. Dump reach, construction bucket, no edge - 37.0 in. Dump reach, construction bucket, no edge - 3, 1 ft, in. Ground clearance - 9.3 in. Angle of departure degree - 30.5 degree (angle) Front turn radius, foundry bucket - 80.0 in. Front turn radius, foundry bucket - 6, 8 ft, in. Dump angle (full lift height) degree - 41.0 degree (angle) Bucket rollback (ground level) degree - 34.0 degree (angle) Loader Performance SAE rated operating capacity at 35% tipping load (construction bucket) - 2590.0 lb. SAE rated operating capacity at 50% tipping load (construction bucket) - 3700.0 lb. Boom breakout force with foundry bucket - 5250.0 lb. Boom breakout force with construction bucket - 4750.0 lb. Bucket breakout force with foundry bucket - 8750.0 lb. Bucket breakout force with heavy-duty construction bucket - 6000.0 lb.
- Final Tier 4/EU Stage IV engine
- 6.75-inch longer track frames
- 40 percent more breakout force
- Tri-Cool™ System Design
- Driveline
- Engine Manufacturer - Yammar
- Engine Model - 4TNV94FHT
- Emission Rating - Tier 4
- Aspiration - Turbo. intercooled
- Displacement - 3.1 ltr (186.3 Inches)
- Rated Speed - 2500 rpm
- Engine Output - Net - 72 Net (96.6 kW hp)
- Engine Output - Gross, kW (hp) - 74.6 kW (100 hp)
- Torque - 395 NM (291.3 lbf / ft)
- Track Shoe Width - 450 mm (17.7 inches)
- Dimensions
- Length - No Bucket, - 3100 mm (122 inches)
- Length - With Bucket - 3710 mm (146 inches)
- Width - No Bucket - 2050 mm (80.7 inches)
- Height - Top Of Cab - 2200 mm (86.7 inches)
- Ground Clearance - 240 mm (9.4 inches)
- Rear Departure Angle - 31°
- Track Gauge - 1600 mm (63.1 in)
- Height to Hinge Pin - 3350 mm (132 in)
- Dump Angle, 48°
- Dump Height - Maximum - 2690 mm (106.1 in)
- Rollback - Ground Level, 35°
- Capacities
- Fuel Tank, ltr (gallons (US)) - 114 (30)
- Performance
- Rated Operating Capacity - 1680 kg (3700 lbs)
- Tipping Load - 4799 kg (10570 lbs)
- Ground Bearing Pressure - 34.1 kPa (5 PSI)
- Speed - Maximum - 12.6 kph (7.8 MPH)
- Breakout - Lift - 37.8 kN (8520 lbf)
- Breakout - Bucket - 61.8 kN (13904 lbf)
- Hydraulic Power - 37.29 kW (50 hp)
- Hydraulic Power - Option - 61.234 kW (82.1 hp)
- Pump Flow - 95 lt/min (25 gallons (US / min))
- Pump Flow Option - 156 lt/min (41.1 Gallons US / min)
- System Pressure - 237.87 bar (3450 PSI)
Skid Steer Loader
- Final Tier 4-emission certified engine
- Vertical-lift boom
- Clear sightlines above and below boom
- 25% more cab space
- Dimensions
- Length - No Bucket, - 2630 (103)
- Length - With Bucket - 3240 (127.6)
- Width - No Bucket - 1600 (62.9)
- Overall Height, mm (inches) – 1960 (77.2)
- Ground Clearance - 180 (7)
- Wheelbase, mm (inches) – 1050 (41.5)
- Rear Departure Angle – 22.3°
- Height to Hinge Pin mm mm, mm (inches) - 3050 (120)
- Dump Angle, 42°
- Dump Height - Maximum - 2400 (94.3)
- Reach - Max Dump Height, mm (inches) – 860 (34)
- Rollback - Ground Level, 30°
- Performance
- Rated Operating Capacity - Optional Counterweight, kg (lbs) - 951 (2095)
- Rated Operating Capacity, kg (lbs) – 883 (1945)
- Tipping Capacity (SAE), kg (lbs) – 1766 (3890)
- Axle Torque - Maximum, Nm (lbf / ft) – 6459 (4764)
- Speed - Maximum, kph (mph) - 11.1 (6.9)
- Speed - Maximum Option, kph (mph) – 16.3 (10.1)
- Breakout - Lift, kN - 22.2 (5000)
- Breakout - Bucket, kN - 26.6 (6000)
- Hydraulic Power kW kW, kW (hp) – 23.159 (31)
- Pump Output, lt/min (gallons (US) / min) – 59 (16)
- System Pressure, bar (PSI) – 237.87 (3450)
- Final Tier 4-emission certified engine
- Operating capacity: 2,190 lbs
- Gross horsepower: 69 HP
- Operating weight: 7,150 lbs
- Lift height: 10 ft 2 in
- Bucket break-out force: 4,200 lbs
- Vertical-lift boom
- Clear sightlines above and below boom
- 25% more cab space
- Dimensions
- Length - No Bucket, mm (inches) - 2850 (112.3)
- Length - With Bucket, mm (inches) - 3460 (136.3)
- Width - No Bucket, mm (inches) - 1700 (67)
- Overall Height, mm (inches) – 2060 (81.1)
- Ground Clearance, mm (inches) - 240 (9.3)
- Wheelbase, mm (inches) – 1120 (44.2)
- Rear Departure Angle – 28°
- Height to Hinge Pin, mm (inches) – 3100 (122.2)
- Dump Angle, 43°
- Dump Height - Maximum, mm (inches) – 2480 (97.7)
- Reach - Max Dump Height, mm (inches) – 740 (29.2)
- Rollback - Ground Level, 33°
- Capacities
- Fuel Tank, ltr (gallons (US)) – 79 (21)
- Performance
- Rated Operating Capacity - Option Counterweight, kg (lbs) – 1067 (2350)
- Rated Operating Capacity, kg (lbs) – 994 (2190)
- Tipping Capacity (SAE), kg (lbs) – 1989 (4380)
- Axle Torque - Maximum, Nm (lbf / ft) – 6771 (4994)
- Speed - Maximum, kph (mph) – 11.1 (6.9)
- Speed - Maximum Option, kph (mph) – 17.9 (11.1)
- Breakout - Lift, kN (lbf) – 16.5 (3725)
- Breakout - Bucket, kN (lbf) – 26.6 (6000)
- Hydraulic Power, kW (hp) – 28.842 (38.6)
- Hydraulic Power - Option, kW (hp) – 41.414 (55.5)
- Pump Output, lt/min (gallons (US) / min) – 78 (21)
- Pump Flow - Option, lt/min (gallons (US) / min) – 112 (30)
- System Pressure, bar (PSI) – 224.08 (3250)
- Powerful Yanmar engine
- Gross Rated Power: 73.0 kW (98.0 hp)
- Net Peak Power: 70.8 kW (95.0 hp)
- Rated Operating Capacity: 1339 kg (2,950 lb.)
- Operating Weight: 4508 kg (9,930 lb.)
- Bucket Breakout Force: 4767 kg (10,500 lb.)
- Completely Redesigned Cab that takes Comfort to the Next Level
- Large Frame Machines Offer a Suite of Technology Solutions
- Redesigned 330 and 331 Come Packed with More Power and Top of the Line Features
- Additional attachment offerings for optimal pairing with large frame P-Tier Skid Steers and Compact Track Loaders
- Quik-Tatch durability improvements allow for greater reliability
- Final Tier 4/EU Stage IV engine
- 40 percent more breakout force
- Increased auxiliary hydraulic flow
- Automatic shutdown system
- Dimensions
- Length - No Bucket, mm (inches) – 3100 (122)
- Length - With Bucket, mm (inches) – 3710 (146)
- Width - No Bucket, mm (inches) – 1980 (78)
- Overall Height, mm (inches) – 2190 (86.3)
- Ground Clearance, mm (inches) – 250 (9.7)
- Wheelbase, mm (inches) – 1270 (49.9)
- Rear Departure Angle – 29°
- Height to Hinge Pin, mm (inches) – 3350 (132)
- Dump Angle, 48°
- Dump Height - Maximum, mm (inches) – 2690 (106.1)
- Reach - Max Dump Height, mm (inches) – 710 (28)
- Rollback - Ground Level, 35°
- Performance
- Rated Operating Capacity - Option Counterweight, kg (lbs) – 1430 (3150)
- Rated Operating Capacity, kg (lbs) – 1362 (3000)
- Tipping Capacity (SAE), kg (lbs) – 2724 (6000)
- Axle Torque - Maximum, Nm (lbf / ft) – 8480 (6235)
- Speed - Maximum, kph (mph) – 19.3 (12)
- Breakout - Lift, kN (lbf) – 31.1 (7000)
- Breakout - Bucket, kN (lbf) – 41.5 (9350)
- Hydraulic Power, kW (hp) – 31.402 (42.1)
- Hydraulic Power - Option, kW (hp) – 54.168 (72.6)
- Pump Output, lt/min (gallons (US) / min) – 80 (23.5)
- Pump Flow - Option, lt/min (gallons (US) / min) – 138 (36.5)
- System Pressure, bar (PSI) – 237.87 (3450)

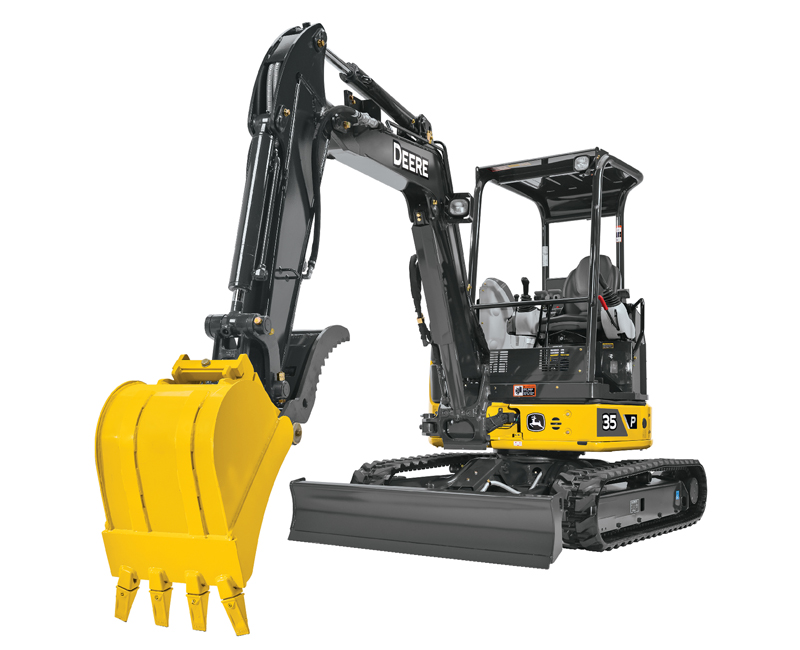

Excavator
- Final Tier 4 emission-certified engine
- Wider entryway for easier entrance/exit
- Improved access to side-by-side cooler cores
- Standard auxiliary hydraulics
- Net Power: 17.4 kW (23.3 hp)
- Operating Weight: 3690 kg (8,135 lb.)
- Max digging depth: 10 ft. 0 in.
- Max digging reach: 17 ft. 1 in.
- Dimensions
- Transport Length Mono Boom, mm (ft/in) – 4640 (15 ft 3 in)
- Transport Height - Maximum, mm (ft/in) – 2480 (8 ft 2 in)
- Overall Width, mm (ft/in) – 1740 (5 ft 9 in)
- Track Length On Ground, mm (ft/in) – 1660 (5 ft 5 in)
- Undercarriage Overall Length, mm (ft/in) – 2110 (6 ft 11 in)
- Tailswing Radius, mm (ft/in) – 870 (2 ft 10 in)
- Ground Clearance, mm (inches) – 280 (11)
- Dozer Blade Height, mm (inches) – 373 (14.7)
- Dozer Blade Width, mm (ft/in) – 1740 (5 ft 9 in)
- Width over standard tracks, mm (ft/in) – 1740 (5 ft 9 in)
- Track Gauge, mm (ft/in) – 1440 (4 ft 9 in)
- Digging Reach - Mono Boom, mm (ft/in) – 5210 (17 ft 1 in)
- Dig Height - Mono Boom, mm (ft/in) – 4700 (16 ft)
- Dump Height - Mono Boom mm, mm (ft/in) – 3310 (11 ft 4 in)
- Dig Depth - Mono Boom, mm (ft/in) – 3060 (10 ft )
- Final Tier 4 emission-certified engine
- Net power: 35.9 HP
- Max digging depth: 11 ft. 7 in.
- Max digging reach: 11 ft. 7 in.
- Spacious operator station with wider entryway for easier entrance/exit
- Multifunction monitor displays vital machine info
- Service door improves access to new side-by-side cooler cores
- Dimensions
- Transport Length Mono Boom, mm (ft/in) – 5470 (17 ft 11 in)
- Transport Height - Maximum, mm (ft/in) – 2530 (8 ft 4 in)
- Overall Width, mm (ft/in) – 2000 (6 ft 7 in)
- Track Length On Ground, mm (ft/in) – 2000 (6 ft 7 in)
- Undercarriage Overall Length, mm (ft/in) – 2500 (8 ft 2 in)
- Tailswing Radius, mm (ft/in) – 1000 (3 ft 3 in)
- Ground Clearance, mm (inches) – 340 (13)
- Dozer Blade Height, mm (inches) – 375 (15)
- Dozer Blade Width, mm (ft/in) – 2000 (6 ft 7 in)
- Width over standard tracks, mm (ft/in) – 2000 (6 ft 7 in)
- Track Gauge, mm (ft/in) – 1600 (5 ft 3 in)
- Digging Reach - Mono Boom, mm (ft/in) – 5960 (19 ft 7 in)
- Dig Height - Mono Boom, mm (ft/in) – 5750 (18 ft 10 in)
- Dump Height - Mono Boom mm, mm (ft/in) – 4070 (13 ft 4 in)
- Dig Depth - Mono Boom, mm (ft/in) – 3530 (11 ft 7 in)
- Standard Dipper mm, mm (ft/in) – 1380 (4 ft 6 in)
Wheel Loader
- Powerful 44 HP Yanmar engine
- Hydrostatic transmission
- Net Power: 33 kW (44 hp) at 2,200 rpm
- Operating Weight: 4840 kg (10,670 lb.)
- Bucket Capacity: 0.7–1.1 m3 (0.9–1.4 cu. yd.)
- Bucket Break-Out: 3250 kgf (7165 lbf)
- 365 / 70 R18 Tires
- 16.4 gallon fuel tank
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Ease of serviceability allows you to spend more time completing tasks
- Excellent visibility for increased jobsite awareness
- 2-Year / 2,000-Hour full machine standard warranty
- Powerful 62 HP Yanmar 4TNV86CHT-M engine
- Hydrostatic transmission
- Net Power: 47 kW (62 hp) at 2,200 rp
- Operating Weight: 5220 kg (11,508 lb.)
- Bucket Capacity: 0.7–1.1 m3 (0.9–1.4 cu. yd.)
- Bucket Break-Out: 4180 kgf (9215 lbf)
- 365 / 70 R18 Tires
- 16.4 gallon fuel tank
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Ease of serviceability allows you to spend more time completing tasks
- Excellent visibility for increased jobsite awareness
- 2-Year / 2,000-Hour full machine standard warranty
- Powerful 71 HP Yanmar 4TNV98CT engine
- Hydrostatic transmission
- Net Power: 52 kW (71 hp) at 2,400 rpm
- Operating Weight: 5560 kg (12,258 lb.)
- Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)
- Bucket Break-Out: 4895 kgf (10792 lbf)
- 365 / 70 R18 Tires
- 23.8 gallon fuel tank
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Ease of serviceability allows you to spend more time completing tasks
- Excellent visibility for increased jobsite awareness
- 2-Year / 2,000-Hour full machine standard warranty
- Powerful 72 HP Yanmar 4TN86CHT-M engine
- Hydrostatic transmission
- Net Power: 53 kW (72 hp) at 2,200 rpm
- Operating Weight: 5920 kg (13,051 lb.)
- Bucket Capacity: 0.7–1.1 m3 (0.9–1.4 cu. yd.)
- Bucket Break-Out: 5000 kgf (11023 lbf)
- 405 / 70 R20 Tires
- 16.4 gallon fuel tank
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Ease of serviceability allows you to spend more time completing tasks
- Excellent visibility for increased jobsite awareness
- 2-Year / 2,000-Hour full machine standard warranty
- Powerful 71 HP Yanmar 4TNV98CT engine
- Hydrostatic transmission
- Net Power: 52 kW (71 hp) at 2,400 rpm
- Operating Weight: 6400 kg (14,110 lb.)
- Bucket Capacity: 0.8–1.6 m3 (1.0–2.1 cu. yd.)
- Bucket Break-Out: 5650 kgf (12456 lbf)
- 405 / 70 R20 Tires
- 23.8 gallon fuel tank
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Ease of serviceability allows you to spend more time completing tasks
- Excellent visibility for increased jobsite awareness
- 2-Year / 2,000-Hour full machine standard warranty
- Powerful 103 HP John Deere PowerTech PWS 4045H engine
- Hydrostatic transmission
- Net Power: 76 kW (103 hp) at 2,000 rpm
- Operating Weight: 8860 kg (19,533 lb.)
- Bucket Capacity: 1.5–2.0 m3 (2.0–2.6 cu. yd.)
- Bucket Break-Out: 7444 kgf (16411 lbf)
- 17.5 / R25 Tires
- 40.9 gallon fuel tank
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Ease of serviceability allows you to spend more time completing tasks
- Excellent visibility for increased jobsite awareness
- 2-Year / 2,000-Hour full machine standard warranty
Benefits to Buying John Deere Construction Equipment:
From the Minnesota dealer you can trust
We are proud of our Minnesota roots. We have served the area for over 100 years and currently operate as the sole licensed John Deere dealer in the Twin Cities metro. We offer:
- Knowledgeable and friendly sales staff
- Top notch service technicians
- Over a million parts in stock
- Helpful online resources
- Top brands such as John Deere, Toro and Gravely
Let's get to work
Legendary reliability, cutting-edge technology, and operator-focused design, makes John Deere construction equipment a go-to choice for professionals looking to maximize productivity and efficiency.
