Compact Track Loader
- Final Tier 4-emission certified engine
- Clear sightlines above and below boom
- Optimized power-to-weight ratio
- Swing-out hydraulic coolers
- Dimensions
- Length - No Bucket, - 2630 mm (103 inches)
- Length - With Bucket - 3240 mm (127.6 inches)
- Width - No Bucket - 1650 mm (65.1 inches)
- Height - Top Of Cab - 1990 mm (78.5 inches)
- Ground Clearance - 210 mm (8.3 inches)
- Rear Departure Angle - 32.3°
- Track Gauge - 1330 (52.5)
- Height to Hinge Pin - 3070 mm (121 inches)
- Dump Angle, 42°
- Dump Height - Maximum - 2430 mm (95.6 inches)
- Rollback - Ground Level, 30°
- Performance
- Rated Operating Capacity - 965 kg (2125 lbs)
- Tipping Load - 2756 kg (6070 lbs)
- Ground Bearing Pressure - 38 kPA (5.5 PSI)
- Speed - Maximum - 11.3 kph (7 mph)
- Speed - Maximum Option - 13.2 kph (8.2 mph)
- Breakout - Lift - 22.2 kN (5000 lbf)
- Breakout - Bucket - 26.6 kN (6000 lbf)
- Hydraulic Power - 27.477 kW (36.8 hp)
- Hydraulic Power - 23.159 kW (31 hp)
- Pump Flow- 59 lt/min (16 gallons (US) / min)
- System Pressure - 237.87 bar (3450 PSI)
- Final Tier 4/EU Stage IV engine
- 6.75-inch longer track frames
- 40 percent more breakout force
- Tri-Cool™ System Design
- Driveline
- Engine Manufacturer - Yanmar
- Engine Model - 4TNV98CT
- Emission Rating - Tier 4
- Aspiration - Turbo
- Displacement, ltr - 3.3 (203 in³)
- Rated Speed - 2500 rpm
- Engine Output - Net, kW (hp) - 52.5 (70)
- Engine Output - Gross, kW (hp)54.8 (74)
- Torque, Nm (lbf / ft) - 280 (207)
- Track Shoe Width - 320 mm (12.6 in)
- Dimensions
- Length - No Bucket, - 2850 mm (112.3 in)
- Length - With Bucket - 3460 mm (136.3 in)
- Width - No Bucket - 1820 mm (71.5 in)
- Height - Top Of Cab - 2060 mm (81.1 in)
- Ground Clearance - 240 mm (9.3 in)
- Rear Departure Angle - °30.5
- Track Gauge - 1500 mm (58.9 in)
- Height to Hinge Pin - 3200 mm (126.1 in)
- Dump Angle, °41
- Dump Height - Maximum - 2590 mm (102.1 in)
- Rollback - Ground Level, °34
- Capacities
- Fuel Tank - 79 ltr (21 gallons (US))
- Performance
- Rated Operating Capacity - 1176 kg (2590 lbs)
- Tipping Load - 3360 kg (7400 lbs)
- Ground Bearing Pressure, kPa (PSI) - 39.3 (5.7)
- Speed - Maximum - 9.3 kph (5.8 mph)
- Speed - Maximum Option - 13.2 kph (8.2 mph)
- Breakout - Lift - 23.3 kN (5250 dbf)
- Breakout - Bucket - 38.9 kN (8750 dbf)
- Hydraulic Power - 27.477 kW (36.8 hp)
- Hydraulic Power - Option - 39.645 kW (53.1 hp)
- Pump Flow- 70 lt/min (19 gallons (US) / min)
- Pump Flow - Option - 101 lt/min (27 gallons (US) / min)
- System Pressure - 237.87 bar (3450 PSI)
- Final Tier 4/EU Stage IV engine
- 6.75-inch longer track frames
- 40 percent more breakout force
- Tri-Cool™ System Design
- Driveline
- Engine Manufacturer - Yammar
- Engine Model - 4TNV94FHT
- Emission Rating - Tier 4
- Aspiration - Turbo. intercooled
- Displacement - 3.1 ltr (186.3 Inches)
- Rated Speed - 2500 rpm
- Engine Output - Net - 72 Net (96.6 kW hp)
- Engine Output - Gross, kW (hp) - 74.6 kW (100 hp)
- Torque - 395 NM (291.3 lbf / ft)
- Track Shoe Width - 450 mm (17.7 inches)
- Dimensions
- Length - No Bucket, - 3100 mm (122 inches)
- Length - With Bucket - 3710 mm (146 inches)
- Width - No Bucket - 2050 mm (80.7 inches)
- Height - Top Of Cab - 2200 mm (86.7 inches)
- Ground Clearance - 240 mm (9.4 inches)
- Rear Departure Angle - 31°
- Track Gauge - 1600 mm (63.1 in)
- Height to Hinge Pin - 3350 mm (132 in)
- Dump Angle, 48°
- Dump Height - Maximum - 2690 mm (106.1 in)
- Rollback - Ground Level, 35°
- Capacities
- Fuel Tank, ltr (gallons (US)) - 114 (30)
- Performance
- Rated Operating Capacity - 1680 kg (3700 lbs)
- Tipping Load - 4799 kg (10570 lbs)
- Ground Bearing Pressure - 34.1 kPa (5 PSI)
- Speed - Maximum - 12.6 kph (7.8 MPH)
- Breakout - Lift - 37.8 kN (8520 lbf)
- Breakout - Bucket - 61.8 kN (13904 lbf)
- Hydraulic Power - 37.29 kW (50 hp)
- Hydraulic Power - Option - 61.234 kW (82.1 hp)
- Pump Flow - 95 lt/min (25 gallons (US / min))
- Pump Flow Option - 156 lt/min (41.1 Gallons US / min)
- System Pressure - 237.87 bar (3450 PSI)

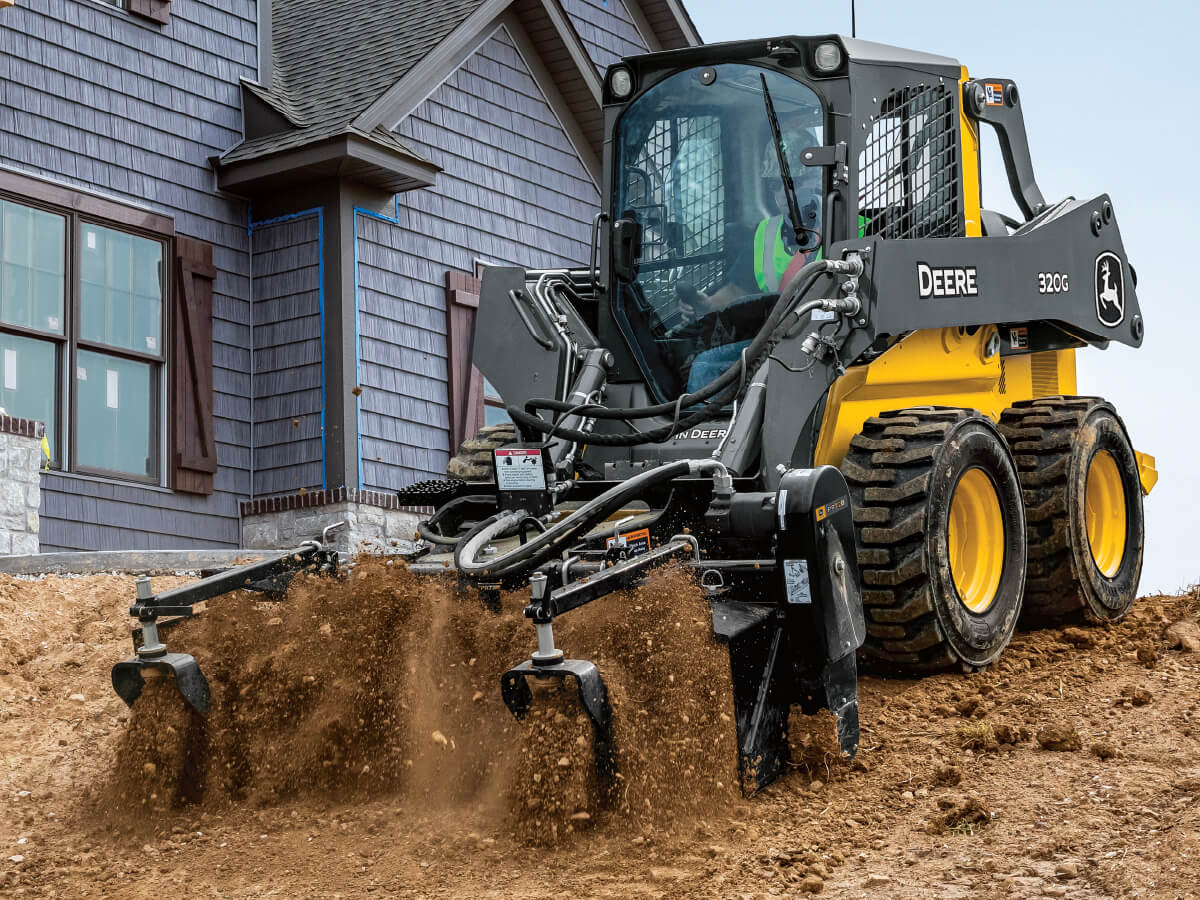

Skid Steer Loader
- Final Tier 4-emission certified engine
- Vertical-lift boom
- Clear sightlines above and below boom
- 25% more cab space
- Dimensions
- Length - No Bucket, - 2630 (103)
- Length - With Bucket - 3240 (127.6)
- Width - No Bucket - 1600 (62.9)
- Overall Height, mm (inches) – 1960 (77.2)
- Ground Clearance - 180 (7)
- Wheelbase, mm (inches) – 1050 (41.5)
- Rear Departure Angle – 22.3°
- Height to Hinge Pin mm mm, mm (inches) - 3050 (120)
- Dump Angle, 42°
- Dump Height - Maximum - 2400 (94.3)
- Reach - Max Dump Height, mm (inches) – 860 (34)
- Rollback - Ground Level, 30°
- Performance
- Rated Operating Capacity - Optional Counterweight, kg (lbs) - 951 (2095)
- Rated Operating Capacity, kg (lbs) – 883 (1945)
- Tipping Capacity (SAE), kg (lbs) – 1766 (3890)
- Axle Torque - Maximum, Nm (lbf / ft) – 6459 (4764)
- Speed - Maximum, kph (mph) - 11.1 (6.9)
- Speed - Maximum Option, kph (mph) – 16.3 (10.1)
- Breakout - Lift, kN - 22.2 (5000)
- Breakout - Bucket, kN - 26.6 (6000)
- Hydraulic Power kW kW, kW (hp) – 23.159 (31)
- Pump Output, lt/min (gallons (US) / min) – 59 (16)
- System Pressure, bar (PSI) – 237.87 (3450)
- Final Tier 4-emission certified engine
- Operating capacity: 2,190 lbs
- Gross horsepower: 69 HP
- Operating weight: 7,150 lbs
- Lift height: 10 ft 2 in
- Bucket break-out force: 4,200 lbs
- Vertical-lift boom
- Clear sightlines above and below boom
- 25% more cab space
- Dimensions
- Length - No Bucket, mm (inches) - 2850 (112.3)
- Length - With Bucket, mm (inches) - 3460 (136.3)
- Width - No Bucket, mm (inches) - 1700 (67)
- Overall Height, mm (inches) – 2060 (81.1)
- Ground Clearance, mm (inches) - 240 (9.3)
- Wheelbase, mm (inches) – 1120 (44.2)
- Rear Departure Angle – 28°
- Height to Hinge Pin, mm (inches) – 3100 (122.2)
- Dump Angle, 43°
- Dump Height - Maximum, mm (inches) – 2480 (97.7)
- Reach - Max Dump Height, mm (inches) – 740 (29.2)
- Rollback - Ground Level, 33°
- Capacities
- Fuel Tank, ltr (gallons (US)) – 79 (21)
- Performance
- Rated Operating Capacity - Option Counterweight, kg (lbs) – 1067 (2350)
- Rated Operating Capacity, kg (lbs) – 994 (2190)
- Tipping Capacity (SAE), kg (lbs) – 1989 (4380)
- Axle Torque - Maximum, Nm (lbf / ft) – 6771 (4994)
- Speed - Maximum, kph (mph) – 11.1 (6.9)
- Speed - Maximum Option, kph (mph) – 17.9 (11.1)
- Breakout - Lift, kN (lbf) – 16.5 (3725)
- Breakout - Bucket, kN (lbf) – 26.6 (6000)
- Hydraulic Power, kW (hp) – 28.842 (38.6)
- Hydraulic Power - Option, kW (hp) – 41.414 (55.5)
- Pump Output, lt/min (gallons (US) / min) – 78 (21)
- Pump Flow - Option, lt/min (gallons (US) / min) – 112 (30)
- System Pressure, bar (PSI) – 224.08 (3250)
- Final Tier 4-emission certified engine
- Operating capacity: 2,690 lbs
- Gross horsepower: 74 HP
- Operating weight: 7,700 lbs
- Lift height: 10 ft 6 in
- Bucket break-out force: 6,000 lbs
- Vertical-lift boom
- Clear sightlines above and below boom
- Dimensions
- Length - No Bucket, mm (inches) – 2850 (112.3)
- Length - With Bucket, mm (inches) – 3460 (136.3)
- Width - No Bucket, mm (inches) – 1700 (67)
- Overall Height, mm (inches) – 2060 (81.1)
- Ground Clearance, mm (inches) – 240 (9.3)
- Wheelbase, mm (inches) – 1120 (44.2)
- Rear Departure Angle – 28°
- Height to Hinge Pin, mm (inches) – 3200 (126)
- Dump Angle, 41°
- Dump Height - Maximum, mm (inches) – 2590 (102.1)
- Reach - Max Dump Height, mm (inches) – 760 (29.9)
- Rollback - Ground Level, 34°
- Capacities
- Fuel Tank, ltr (gallons (US)) – 79 (21)
- Performance
- Rated Operating Capacity - Option Counterweight, kg (lbs) – 1294 (2850)
- Rated Operating Capacity, kg (lbs) – 1221 (2690)
- Tipping Capacity (SAE), kg (lbs) – 2443 (5380)
- Axle Torque - Maximum, Nm (lbf / ft) – 6771 (4994)
- Speed - Maximum, kph (mph) – 11.1 (6.9)
- Speed - Maximum Option, kph (mph) – 17.9 (11.1)
- Breakout - Lift, kN (lbf) – 23.3 (5250)
- Breakout - Bucket, kN (lbf) – 38.9 (8750)
- Hydraulic Power, kW (hp) – 31.009 (41.5)
- Hydraulic Power - Option, kW (hp) – 47.103 (63.1)
- Pump Output, lt/min (gallons (US) / min) – 79 (21)
- Pump Flow - Option, lt/min (gallons (US) / min) – 120 (32)
- System Pressure, bar (PSI) – 237.87 (3450)
- Powerful Yanmar engine
- Gross Rated Power: 73.0 kW (98.0 hp)
- Net Peak Power: 70.8 kW (95.0 hp)
- Rated Operating Capacity: 1339 kg (2,950 lb.)
- Operating Weight: 4508 kg (9,930 lb.)
- Bucket Breakout Force: 4767 kg (10,500 lb.)
- Completely Redesigned Cab that takes Comfort to the Next Level
- Large Frame Machines Offer a Suite of Technology Solutions
- Redesigned 330 and 331 Come Packed with More Power and Top of the Line Features
- Additional attachment offerings for optimal pairing with large frame P-Tier Skid Steers and Compact Track Loaders
- Quik-Tatch durability improvements allow for greater reliability
Excavator
- Final Tier 4 emission-certified engine
- Wider entryway for easier entrance/exit
- Improved access to side-by-side cooler cores
- Standard auxiliary hydraulics
- Net power: 23.3 hp @ 2,400 rpm
- Operating weight: 7,7600 lb.
- Max digging depth: 10 ft. 0 in.
- Max digging reach: 17 ft. 1 in.
- Dimensions
- Transport Length Mono Boom, mm (ft/in) – 4640 (15 ft 3 in)
- Transport Height - Maximum, mm (ft/in) – 2480 (8 ft 2 in)
- Overall Width, mm (ft/in) – 1740 (5 ft 9 in)
- Track Length On Ground, mm (ft/in) – 1660 (5 ft 5 in)
- Undercarriage Overall Length, mm (ft/in) – 2110 (6 ft 11 in)
- Tailswing Radius, mm (ft/in) – 870 (2 ft 10 in)
- Ground Clearance, mm (inches) – 280 (11)
- Dozer Blade Height, mm (inches) – 373 (14.7)
- Dozer Blade Width, mm (ft/in) – 1740 (5 ft 9 in)
- Width over standard tracks, mm (ft/in) – 1740 (5 ft 9 in)
- Track Gauge, mm (ft/in) – 1440 (4 ft 9 in)
- Digging Reach - Mono Boom, mm (ft/in) – 5210 (17 ft 1 in)
- Dig Height - Mono Boom, mm (ft/in) – 4870 (16 ft)
- Dump Height - Mono Boom mm, mm (ft/in) – 3460 (11 ft 4 in)
- Dig Depth - Mono Boom, mm (ft/in) – 3060 (10 ft )
- Standard Dipper mm, mm (ft/in) – 1315 (4 ft 4 in)
- 4-cylinder Yanmar engine
- Net Power: 26.8 kW (35.9 hp)
- Max. Digging Depth: 3.53 m (11 ft. 7 in.)
- Operating Weight: 4920 kg (10,847 lb.)
- Change attachments quickly with mechanical coupler
- Increase efficiency with standard backfill blade
- Ground Level Daily Service with Extended Maintenance Intervals
- Easy-To-Maintain Undercarriage
- Spacious operator stations have wide entryways, making entrance and exit easier than ever
- Optional cab’s front glass is expansive, for exceptional visibility and higher productivity
- An adjustable work light at the top left of the canopy or cab increases job efficiency at night
- A slip resistant entry is provided for safe access to the operator’s seat
- Foldable travel pedals increase foot and leg room
- A suspension seat is standard from the factory
- All controls are conveniently located to the operator’s right include the optional radio.
- Pilot control levers enable an operator to control the boom, bucket, arm, and swing functions.
- Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear and the operator comfortable
- Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern
- A spacious cab with a wide entryway and unsurpassed visibility
- Two-Year/2,000-Hour Full-Machine Standard Warranty
Benefits to Buying John Deere Construction Equipment:
From the Minnesota dealer you can trust
We are proud of our Minnesota roots. We have served the area for over 100 years and currently operate as the sole licensed John Deere dealer in the Twin Cities metro. We offer:
- Knowledgeable and friendly sales staff
- Top notch service technicians
- Over a million parts in stock
- Helpful online resources
- Top brands such as John Deere, Toro and Gravely
Let's get to work
Legendary reliability, cutting-edge technology, and operator-focused design, makes John Deere construction equipment a go-to choice for professionals looking to maximize productivity and efficiency.
